ADVANCED SORTING TECHNOLOGY, SUPERIOR QUALITY

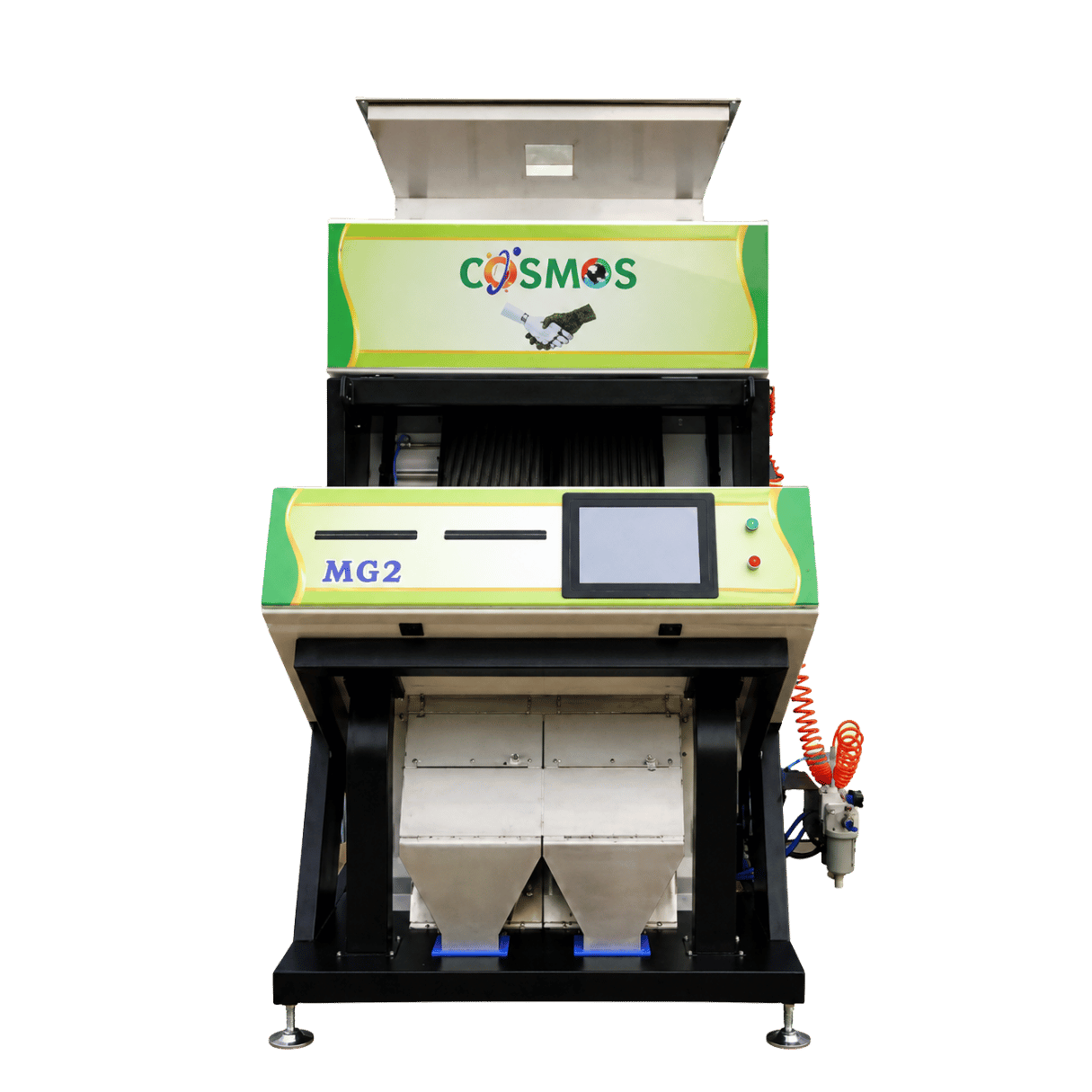

Multigrain Color Sorting Machine
A high-performance solution designed for efficient multigrain sorting, superior purity, and consistent quality across a wide range of grains and pulses.
3.5 kW Power Capacity
3 Tons/Hour Output
99% Sorting Accuracy
Industrial-Grade Build
Why Choose Our Machine?
- Efficiently identifies and separates grains by color and quality.
- Suitable for different grains, pulses, and agricultural products.
- Handles up to 3 tons of grains per hour.
- Built for reliable, continuous industrial operation.
ADVANCED SORTING TECHNOLOGY, SUPERIOR QUALITY
Multigrain Color Sorting Machine
A high-performance solution designed for efficient multigrain sorting, superior purity, and consistent quality across a wide range of grains and pulses.
3.5 kW Power Capacity
3 Tons/Hour Output
99% Sorting Accuracy
Industrial-Grade Build
Why Choose Our Machine?
- Efficiently identifies and separates grains by color and quality.
- Suitable for different grains, pulses, and agricultural products.
- Handles up to 3 tons of grains per hour.
- Built for reliable, continuous industrial operation.
| Specification | LM 40 | MG 1 | MG 2 | MG 3 | MG 4 | MG 5 | MG 6 | MG 7 | MG 8 | MG 10 |
|---|---|---|---|---|---|---|---|---|---|---|
| Channels | 40 | 64 | 128 | 192 | 256 | 320 | 384 | 448 | 512 | 640 |
| Capacity (Input) | 300 to 500KG | Up to 1TPH | Up to 2TPH | Up to 3TPH | Up to 4TPH | Up to 5TPH | Up to 6TPH | Up to 7TPH | Up to 8TPH | Up to 10TPH |
| Carry Over Ratio (Bad:Good) | >20:1 | >20:1 | >30:1 | >30:1 | >30:1 | >30:1 | >30:1 | >30:1 | >30:1 | >30:1 |
| Accuracy | ≥99.99% | ≥99.99% | ≥99.99% | ≥99.99% | ≥99.99% | ≥99.99% | ≥99.99% | ≥99.99% | ≥99.99% | ≥99.99% |
| Weight(KG) | 160 | 320 | 460 | 840 | 980 | 1280 | 1490 | 1680 | 1860 | 2180 |
| Power (KW) | 0.5KW | 1.0KW | 1.5KW | 2.2KW | 2.9KW | 3.7KW | 4.4KW | 5.2KW | 5.9KW | 7.3KW |
| Voltage | 220 V / 50 HZ | 220 V / 50 HZ | 220 V / 50 HZ | 220 V / 50 HZ | 220 V / 50 HZ | 220 V / 50 HZ | 220 V / 50 HZ | 220 V / 50 HZ | 220 V / 50 HZ | 220 V / 50 HZ |
| Servo Stabilizer | 3KVA | 2KVA | 3KVA | 5KVA | 5KVA | 5KVA | 7.5KVA | 7.5KVA | 7.5KVA | 10KVA |
| Air Requirement CFM | 20 | 24 | 48 | 72 | 96 | 96 | 120 | 120 | 144 | 192 |
| Air Compressor Required | 3 HP, 8 BAR | 5 HP, 8 BAR | 10 HP, 8 BAR | 15 HP, 8 BAR | 20 HP, 8 BAR | 20 HP, 8 BAR | 25 HP, 8 BAR | 25 HP, 8 BAR | 30 HP, 8 BAR | 40 HP, 8 BAR |
Features
- Multi-Spectral Recognition Technology – Accurate sorting by colour, shape, texture, and material.
- Ultra-HD Camera System – High-precision detection of grains and impurities.
- Intelligent Shape Sorting – Sorts grains based on size and shape.
- Targeted Positioning Technology – Precise impurity detection and rejection.
- High-Frequency Vibrator – Stable and efficient material feeding.
- Intelligent Anti-Shattering Technology – Minimises grain breakage.
- Easy User Interface – Simple machine operation and settings.
- Intelligent Alarm System – Detects abnormal operating conditions.
- Remote Service Support – PC/mobile control and online maintenance support.
Everything You Need to Know About Our Multigrain Color Sorting Machine
1. What is a Multigrain Color Sorting Machine?
A Multigrain Color Sorting Machine is designed to automatically detect and separate grains based on color, quality, and unwanted impurities.
2. Which grains can the machine sort?
It can be used for various grains, pulses, seeds, and other agricultural products, depending on the required sorting application.
3. What is the processing capacity?
The machine can process up to 3 tons per hour, making it suitable for medium to large-scale processing operations.
4. What is the sorting accuracy of the machine?
The Grain Color Sorting Machine provides an impressive sorting accuracy of up to 99%, helping maintain consistent grain quality.
5. How accurate is the sorting?
The machine delivers up to 99% sorting accuracy, helping improve product purity and overall quality.
6. Is the machine suitable for industrial use?
Yes. It features a durable industrial-grade construction designed for continuous and reliable operation.
